Flushmate Parts Store

503 Series



Flush handle only available through fixture manufacturer.
All prices include shipping and handling.

Service Manual for Flushmate 503 Series

Adobe Acrobat Reader Required.

Tools & Accessories

Flushmate 503/504 Series Service Manual
503
Flushmate 503/504 Series Service Manual$2.50
Flushmate Wrench
ST100100
Flushmate Wrench$6.51
Flushmate Cartridge Wrench
ST100500
Flushmate Cartridge Wrench$13.62
Flushmate Service DVD
VD100100
Flushmate Service DVD$4.99

503 Series Actuation Kits

INTELLI-Flush, with override button with NO sensor
K-100500
INTELLI-Flush, with override button with NO sensor$121.13
Handle/Rod Kit - For St Thomas/Vitromex Tank 6203.424 LH
AP300101-L4
Handle/Rod Kit - For St Thomas/Vitromex Tank 6203.424 LH$23.07
Handle/Rod Kit - For Eljer Tank 141-7000 LH
AP300102-L3
Handle/Rod Kit - For Eljer Tank 141-7000 LH$23.07
Handle/Rod Kit - For St Thomas/Vitromex Tank 6203.024 LH
AP300100-L3
Handle/Rod Kit - For St Thomas/Vitromex Tank 6203.024 LH$23.07
Handle/Rod Kit - For Gerber Tank 28-380 12
AP300104-L32
Handle/Rod Kit - For Gerber Tank 28-380 12" LH$23.07
Handle/Rod Kit - For Gerber Tank 28-380 12
AP300106-R3
Handle/Rod Kit - For Gerber Tank 28-380 12" RH$24.07

503 Series Complete Flushmate System

FLUSHMATE System 1.6 gpf – For all OEMS except Kohler K-4404 tank and Gerber 28-385 tank
M-101526-F31
FLUSHMATE System 1.6 gpf – For all OEMS except Kohler K-4404 tank and Gerber 28-385 tank$116.10
FLUSHMATE System 1.6 gpf – For Kohler K-4404 tank
M-101526-F32
FLUSHMATE System 1.6 gpf – For Kohler K-4404 tank$116.10
FLUSHMATE System 1.6 gpf – For Gerber 28-385 tank (10
M-101526-F33
FLUSHMATE System 1.6 gpf – For Gerber 28-385 tank (10" Rough-In Fixtures)$116.10
Flushmate Wrench
ST100100
Flushmate Wrench$6.51

503 Series Hands Free Actuation

INTELLI-Flush On-Wall Sensor, with white trim
K-100100
INTELLI-Flush On-Wall Sensor, with white trim$172.17
INTELLI-Flush On-Wall Sensor, with chrome trim
K-100101
INTELLI-Flush On-Wall Sensor, with chrome trim$174.59
INTELLI-Flush, with override button with NO sensor
K-100500
INTELLI-Flush, with override button with NO sensor$121.13

503 Series Replacement Parts

Flushmate Lower Supply Kit
BL100504-3-KIT
Flushmate Lower Supply Kit$35.87

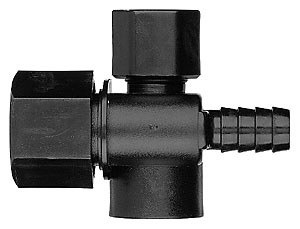

Flushmate Upper Supply
BU100505-KIT
Flushmate Upper Supply$9.76
Flush Valve Cartridge Used on All Series except 200
C-100500-KIT
Flush Valve Cartridge Used on All Series except 200$29.83
Duckbill Valve (Air inducer) 4 Count Pack
B-108288-4PK
Duckbill Valve (Air inducer) 4 Count Pack$5.35
Duckbill Valve (Air inducer) 24 Count Pack
B-108288-BK
Duckbill Valve (Air inducer) 24 Count Pack$14.45
Discharge Extension Locknut for 503 and 504 Series
A-119221
Discharge Extension Locknut for 503 and 504 Series$2.00
Lower Supply Shank Locknut
B-103021
Lower Supply Shank Locknut$1.00
Independent Adjuster with Set Screw
C-218222-1
Independent Adjuster with Set Screw$1.00

503 Series Obsolete Items

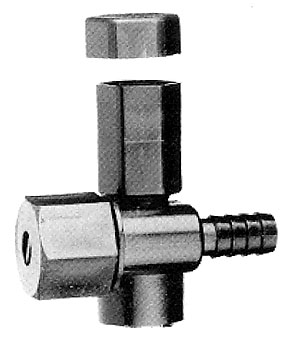

Upper Supply - BU100504
No Longer Available, Replaced by Bu100505-Kit 		BU100505-Kit
Click here to Order
